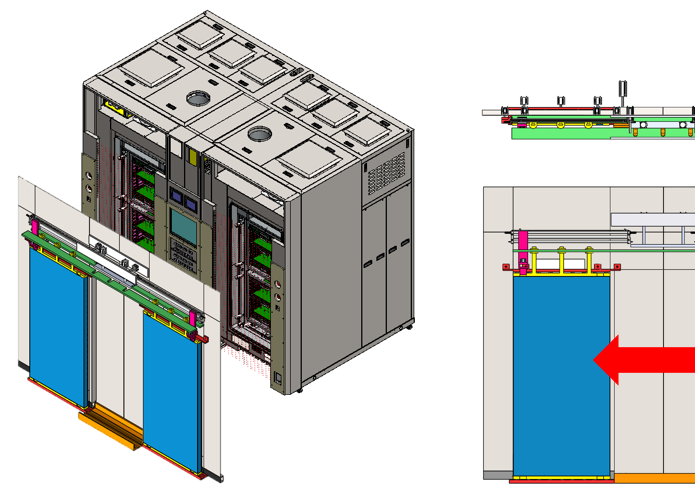

OVEN-256-10W Water-Cooled High and Low Temperature Aging and Functional Test System

OVEN-256-10W is a high-density test system designed to meet the rigorous performance testing requirements of NVMe SSDs, capable of simultaneously testing up to 256 drives. It operates within a temperature range of -10°C to 85°C and supports the latest PCIe Gen5 x4 interface alongside the NVMe Ver2.0 protocol specification. Each test slot features independent control over SSD power supply voltage, including voltage margining from 0V to 14.5V. Building on a mature framework for SSD production testing, the system offers comprehensive support for R&D pilot testing—including EVT, DVT, and PVT—as well as mass production quality and reliability tests such as MP, ORT, and ODT. Its user-friendly operation and highly flexible configuration significantly enhance both production efficiency and end-product quality in SSD manufacturing.

Product Features

• Temperature control range: -10°C to 85°C;
• Temperature change rate: 1°C per minute;
• Supports PCIe Gen5 x4;
• Each test port’s power supply voltage can be controlled via script programming, with an adjustable range of 0.6V – 14.5V and a control accuracy of 1mV;
• Compatible with the latest NVMe Ver2.0 protocol and supports user-defined NVMe commands;
• Extensive script library and a powerful database analysis system;
• LTWolf software supports additional custom features based on client requirements;
• Seamless integration with customer MES systems, with optional customization for production data management systems;
• Firewall protection design ensures complete isolation between testing circuits and devices under test (DUT);
• Comprehensive and proven testing algorithms, including EVT, DVT, RDT, TVM, and more.
