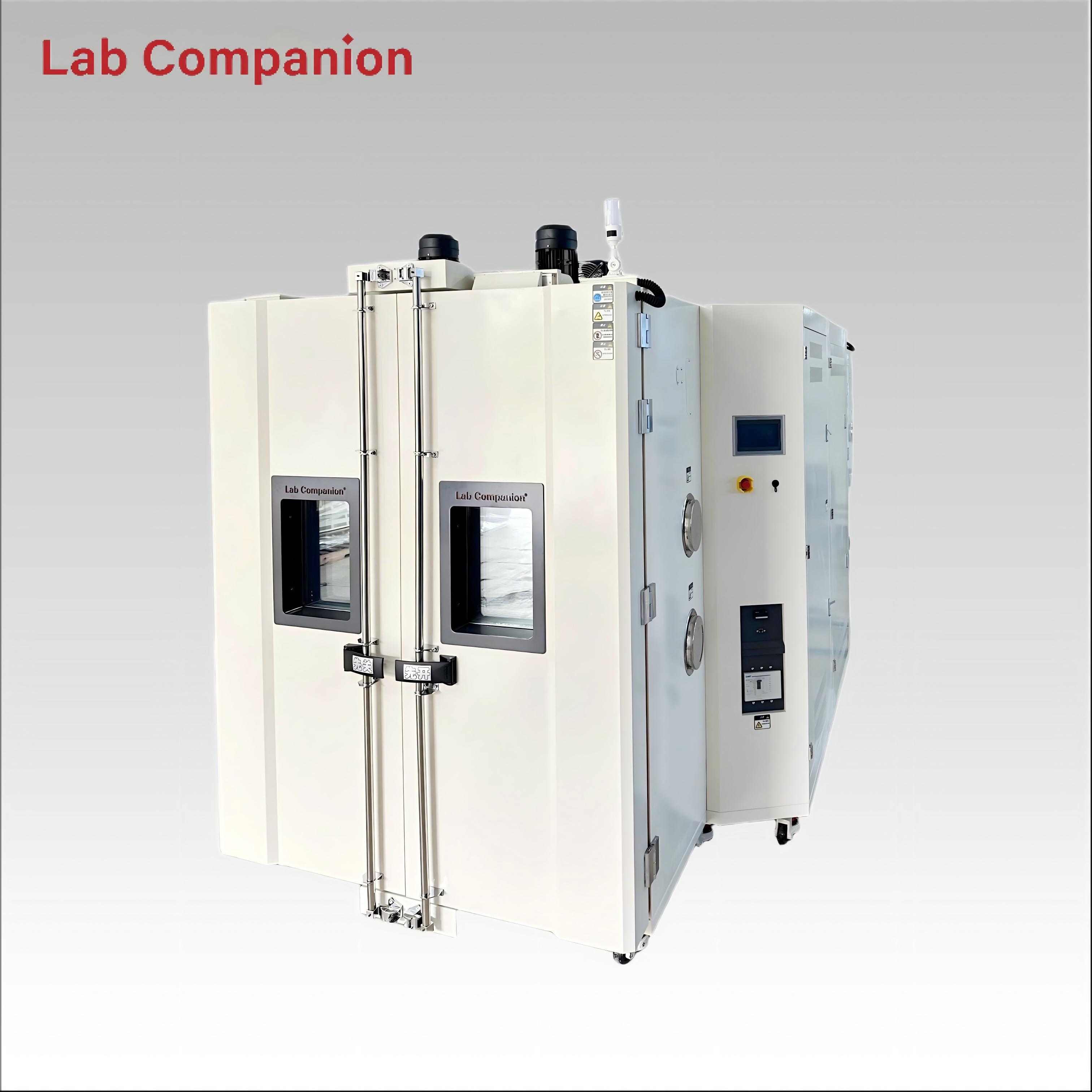

1560L Rapid Thermal Cycling Chamber for Semiconductor Reliability Test
Large 1560L Fast Temp Change Chamber for Automotive Component Testing

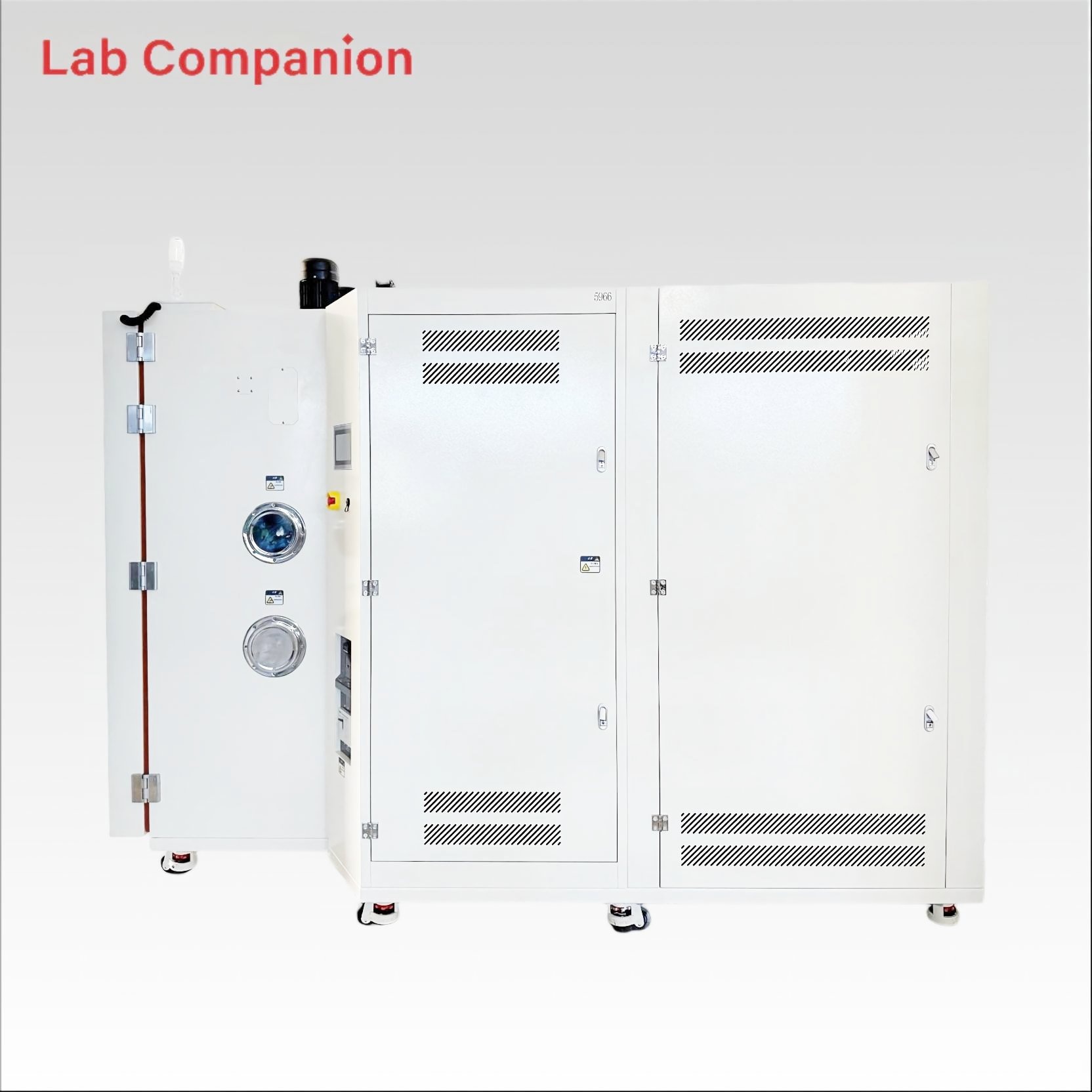

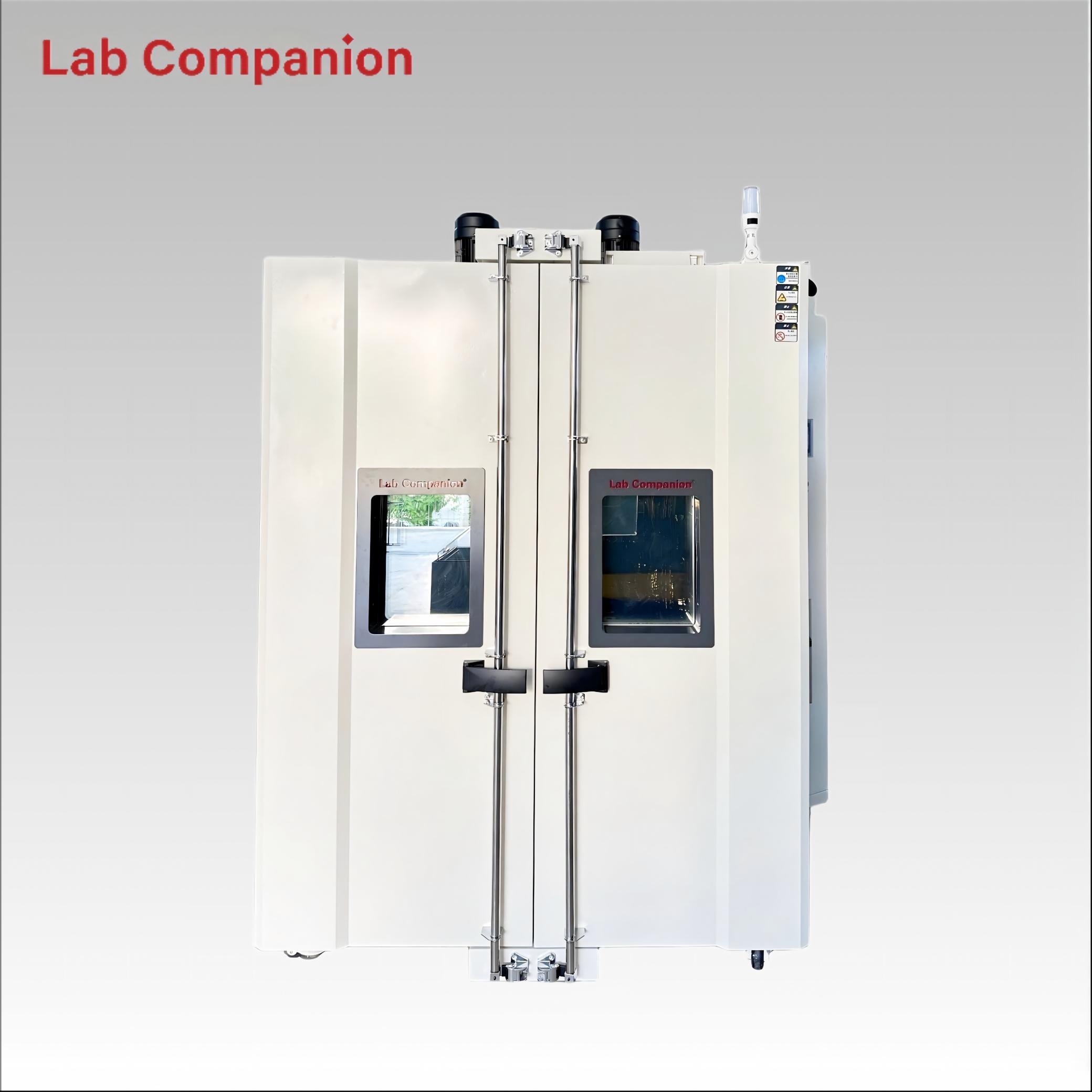

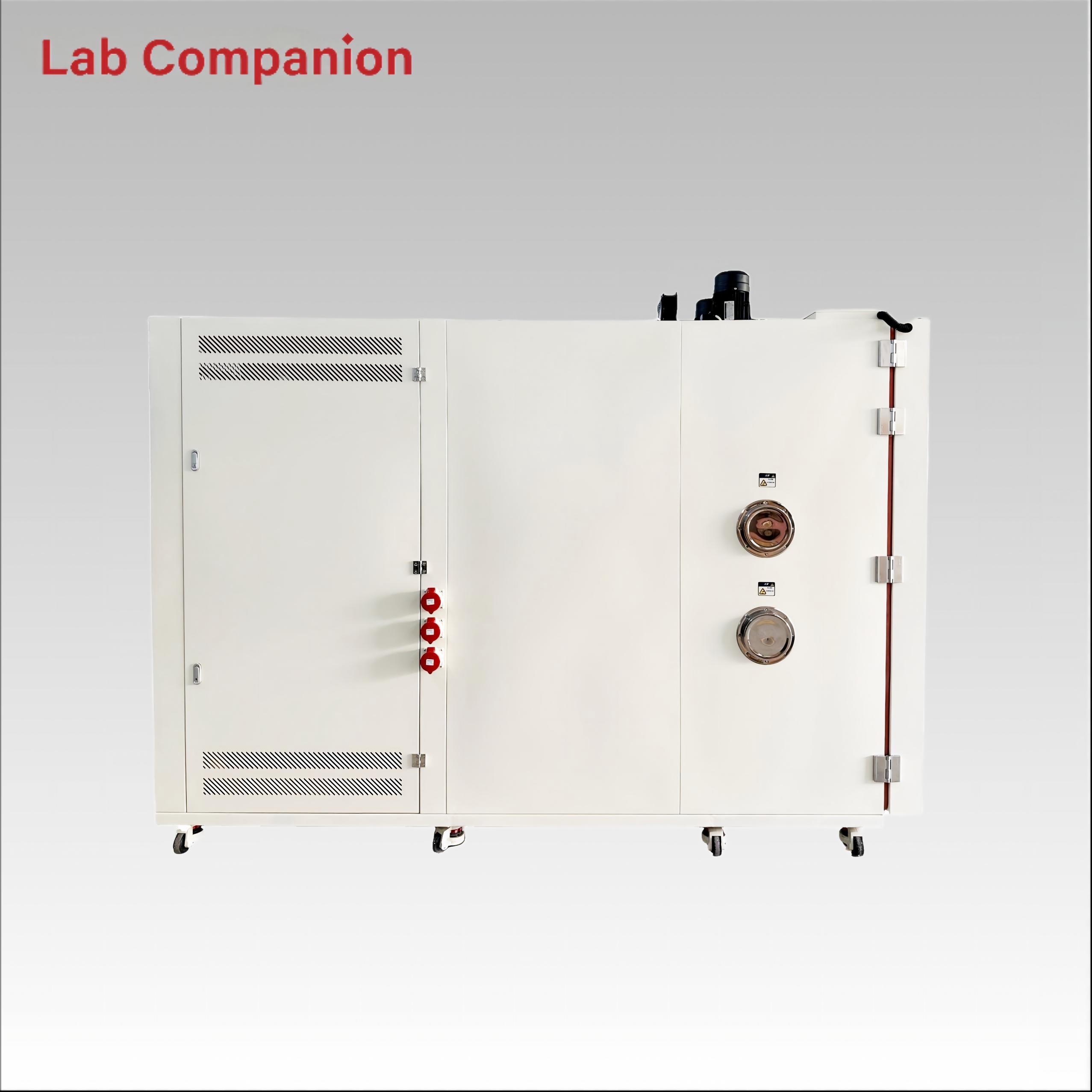

This 1560L Temperature Cycle Test Chamber is widely used for components in electronics, automotive, aerospace and metal industries. It supports rapid temperature variation, gradient conditioning and temperature stress screening to evaluate product performance for design optimization and quality inspection. The SUS304 stainless steel inner chamber has four Φ150mm cable ports (two on each side). It comes with a Q8 touch controller for flexible parameter adjustment under load.
رقم الصنف :
TC-1560-5-5النظام (موك) :
1أصل المنتج :
Chinaلون :
White1560L Rapid Temperature Cycling Chamber for Electronic Product Aging
|
Temperature range |
-70℃～150℃ |
|
Rapid temperature change range |
-40℃ ~ 80℃ |
|
Temperature fluctuation |
± 0.5℃ |
|
Temperature uniformity |
≤2℃ |
|
Temperature deviation |
± 3℃ |
|
Heating rate |
≥5℃/min（-20℃→+80℃ full-range linear heating, load 150KG aluminum ingot + 50KG PCBA + 20KW heat load） |
|
Cooling rate |
≥5℃/min（-20℃→+80℃ full-range linear cooling, load 150KG aluminum ingot + 50KG PCBA + 20KW heat load） |
|
Working volume |
1560L |
|
Internal dimension |
W:1300mm × H:1200mm × D:1000mm |
|
External dimension |
W:1500mm × H:2131mm × D:2903mm |
High Speed 1560L Fast Thermal Cycling Test Chamber for PCB & Optics
Features of the Rapid Temperature Change Test Chamber:
Refrigeration System:
The air supply mode inside the test chamber adopts an upper air supply and lower return air cooling system.
Refrigeration System and Compressor: To ensure the test chamber’s cooling rate and minimum temperature requirements, this chamber is equipped with a binary cascade air-cooled refrigeration system driven by Taikang hermetic compressors. The cascade refrigeration system consists of a high-temperature refrigeration cycle and a low-temperature refrigeration cycle, connected by an evaporative condenser, which also serves as the energy transfer medium. Heat from the working chamber is removed via the two-stage refrigeration system to achieve the target temperature.
The refrigeration system design incorporates energy regulation technology, an effective solution that ensures stable and normal operation of the refrigeration unit. This reduces the operating cost and failure rate of the refrigeration system to an economically optimal level.
(refrigeration room )
|
Number |
Name |
Illustrate |
|
1 |
Compression engine |
Compression refrigeration |
|
2 |
Pressure protection controller |
When the pressure in the pipeline is too high or too low, the equipment will call the police |
Environmental Chamber Temperature Humidity Control
Intelligent Controller Environmental Chamber
1560L High Speed Temperature Cycling Test Chamber

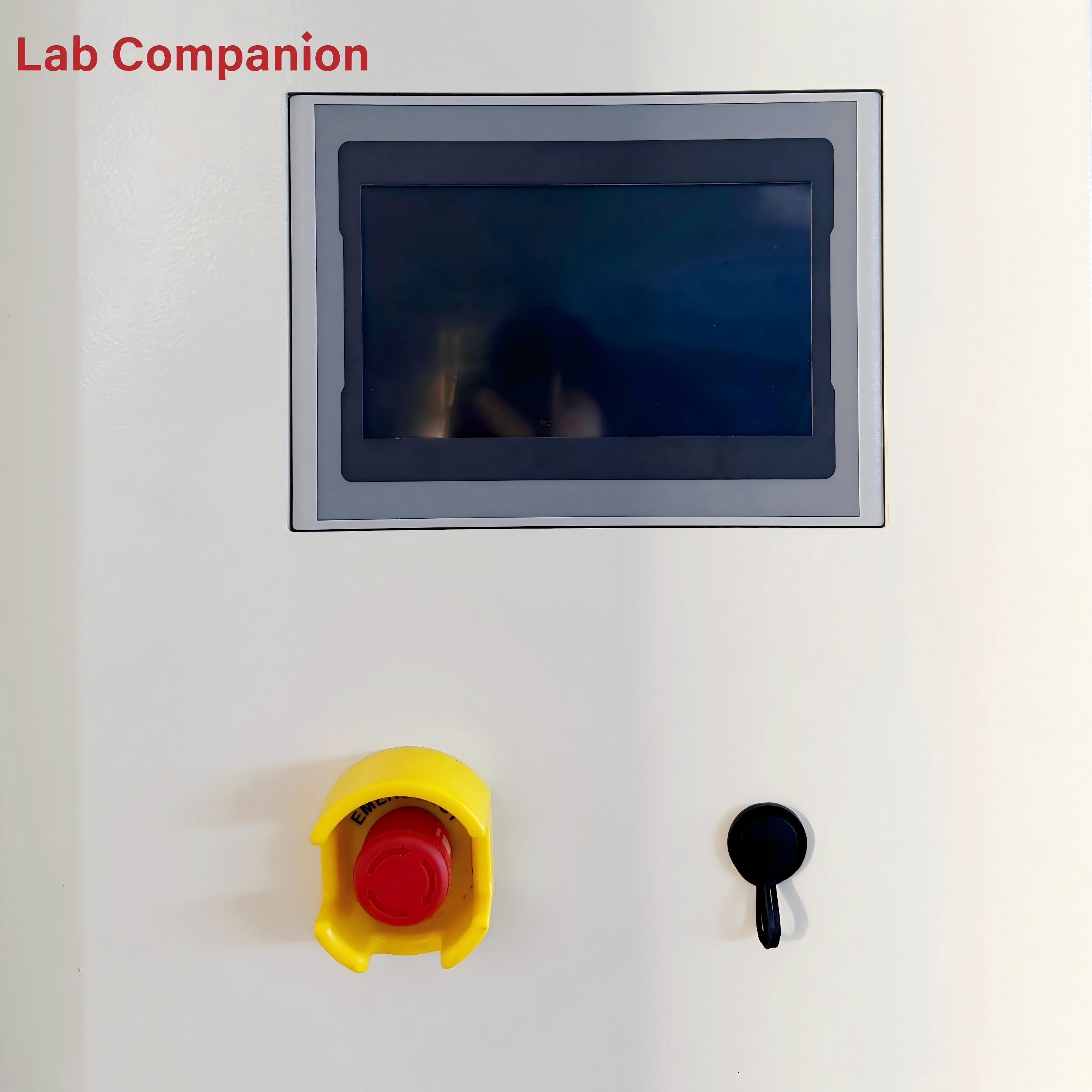

It is temperature and humidity programmable controller which equips with the general control, heating and cooling function by supporting high definition TFT-LCD touch screen and SD card.
Performance：
High accuracy
Precision control with 18bit A/D convertor
TEMP. : ±0.1% of full scale ±1 digit
HUMI. : ±1.0% of full scale ±1digit
Optimizing PID group
Precision control by 6 groups of TEMP./HUMI. and 3 group of temperature only
Specialized controller
As a specialized controller for temperature and humidity, synchronized control system with PT-PT, PT-DCV
Specialized humidity control
Humidity control algorithm implements a stable control according to the equipment size。
Heating cooling control
Configuration separated by display, control, and input / output board
Available to mount panel mount and VESA mount
